Mill section

Break the limit of roll forming method !

Orbital Die Forming / Forming Mill

Outline

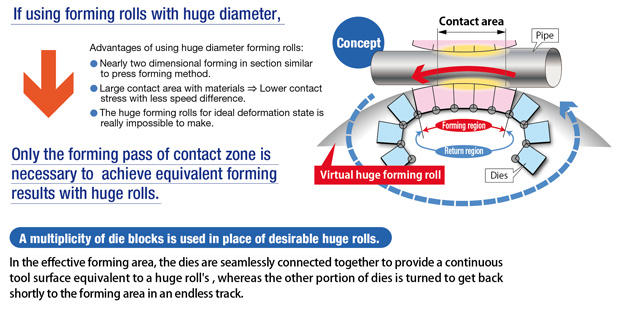

ODF MillODF makes use of multiple die blocks moving in the circumferential direction on an endless track, which are connected together to provide a tool surface with a very large curvature radius and work just like a huge roll. The new forming method eliminates the slippage problem between tool surfaces and metal strip and can cover a wide product range from large diameter pipes with excessive thin wall thickness to small diameter pipes with extra heavy gauge. This ODF method is applicable to each forming stage in the pipe mill.

page top

The development of innovative forming method ODF

The development of innovative forming method ODF

page top

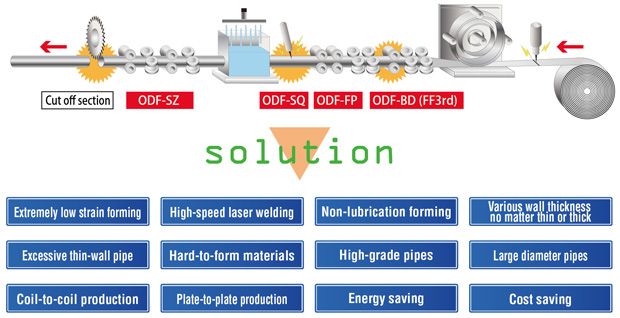

Applications of ODF technology for:

Applications of ODF technology for

page top

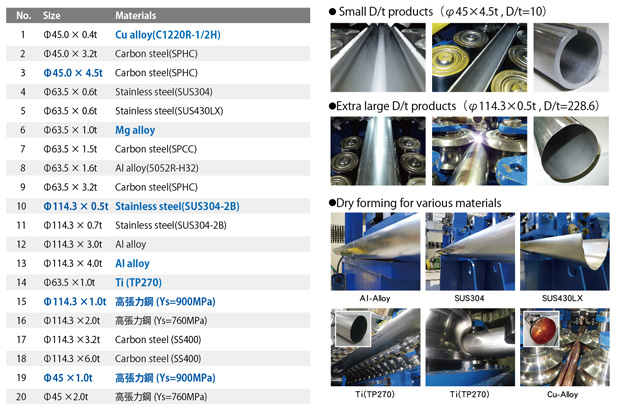

Experiment results
