Mill section

The combination of FEM technologies in forming analysis and structural analysis created mill for the next century, the FFX.

FFX Mill (Flexible Forming Mill) / Forming Mill

Outline

FFX MillLong time dream for "complete common rolls for various pipe sizes" ・・・・The revolutionary FFX Mill is the answer. Our customers praise very highly on its production condition database and numerically controlled roll positioning.

page top

Specifications

Outer Diameter Ranges Max. 1:3
Wall thickness range Thin gage (t/D=1%)~
Thick gage (t/D=10%)
Steel types Structural Steels, Alloy Steels, High Tensile Steels, Stainless Steels
Mill Sizes O.D. 2" ~ 25"
For the most appropriate roll design
page top

Benefits of FFX Mills

  • >Improved productivity by quick roll positioning
  • >Uniform quality by NC roll positioning
  • >Improved product quality
  • >High grade pipe production, such as X80 and N80
  • >Highly adjustable for small lot and size variations
page top

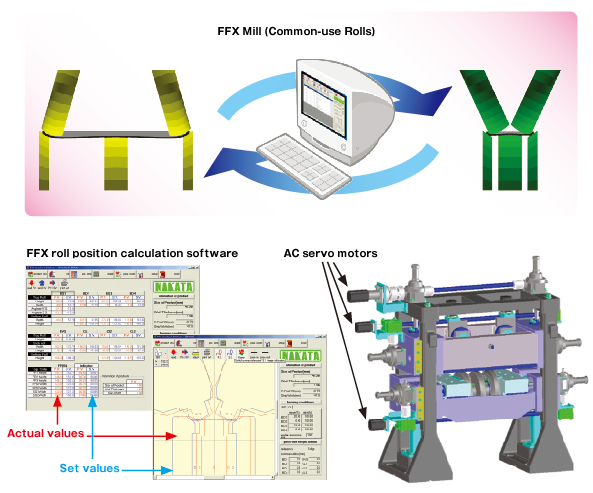

Technical benefit

Relief from dependency on operators' skill levels by use of data based production conditions and optimized roll position.

Technical benefit

page top

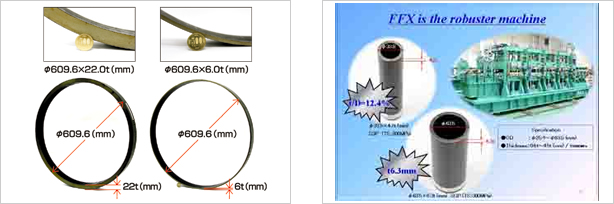

Production Examples

Production Examples

Click here for detailed information for FFX Mills
